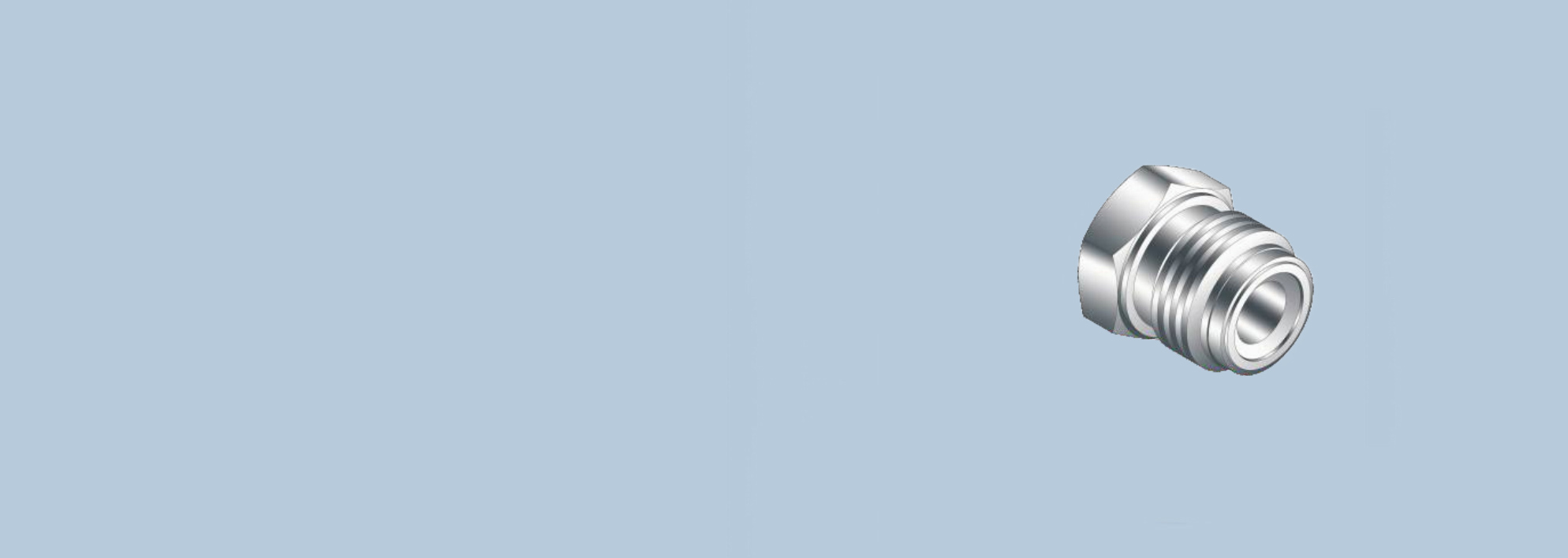

*Material: SS316L
| QCR Size | A/mm | F/mm | N.W./g |
Inch | ||||
1/8 | 17.3 | 9.5 | ||
1/4 | 23.4 | 15.9 | ||
1/2 | 27.4 | 23.8 | ||
3/4 | 36.3 | 33.3 | ||
1 | 38.6 | 41.3 |
Surface Finishing
Surface Finishing | Surface Roughness |
BA | 0.4-1.0μm |
EP | 0.13-0.25μm |
Temperature Rating
Material | °F | °C |
SS316L | 1000 | 538 |
Pressure Ratings
Tube O.D. | Wall Thickness | Pressure Rating | |
Psi | Bar | ||
1/8" | 0.028"(0.71mm) | 8550 | 590 |
1/4" | 0.035"(0.89mm) | 5200 | 359 |
3/8" | 0.035"(0.89mm) | 3350 | 231 |
1/2" | 0.049"(1.24mm) | 3750 | 259 |
3/4" | 0.065"(1.65mm) | 2400 | 165 |
1" | 0.065"(1.65mm) | 2400 | 165 |
