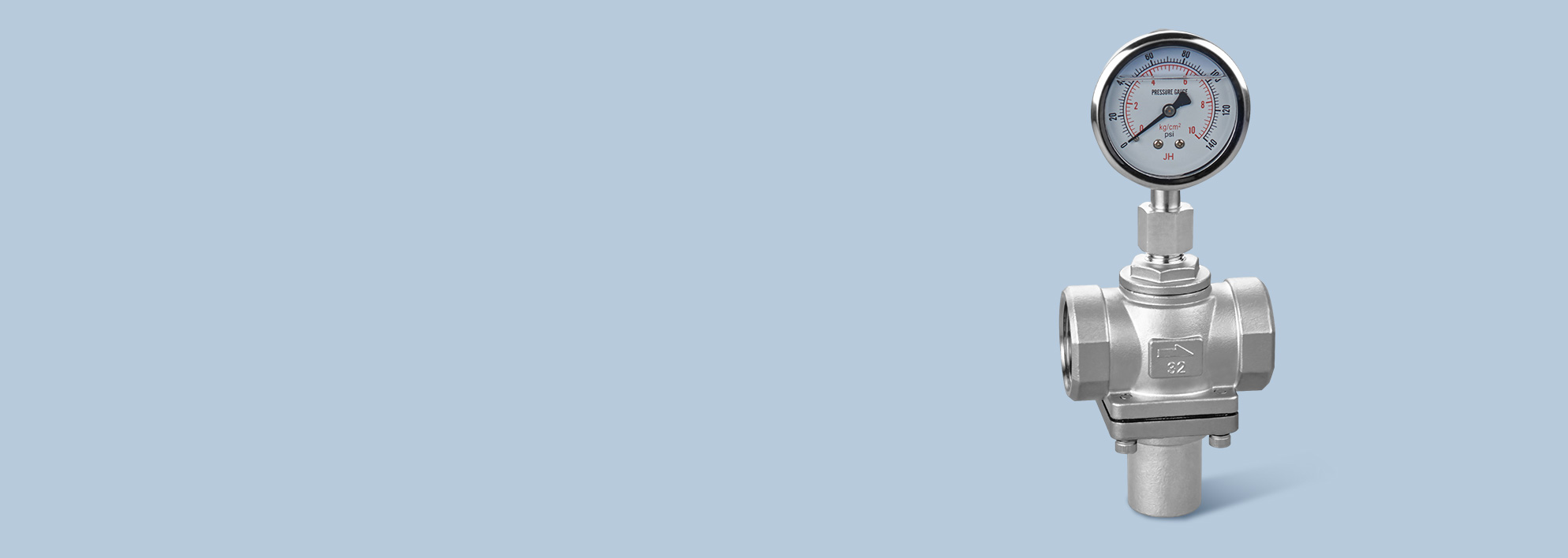

Control Valve Direct Acting Pressure Reducing Valve

Direct Acting Pressure Reducing Valve

Size Range
1/2'' - 2''
Temperature Range
-15~80°C
Pressure Range
1-6 kgf/cm2; 4-10 kgf/cm2
Inquire Now

Specifications

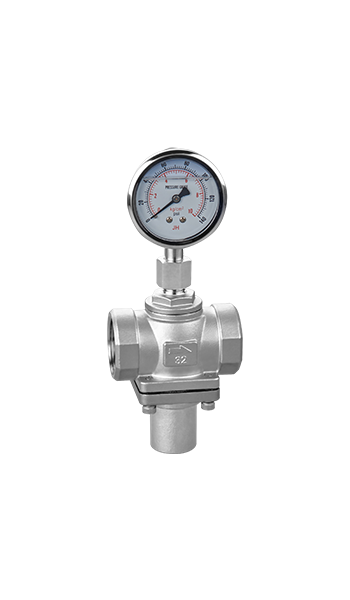

Control Valve Direct Acting Pressure Reducing Valve - Direct Acting Pressure Reducing Valve

Size Range
1/2'' - 2''
Temperature Range
-15~80°C
Pressure Range
1-6 kgf/cm2; 4-10 kgf/cm2
Maximum Applied Pressure
12 kgf/cm2
Material
SS304/SS316
Certifications
ISO, CE
Elastomer/Sealing
NBR;EPDM

Features & Benefits

◆ Direct acting pressure reducing valve is suitable for general liquids.


◆ Suitable for process automation control and many general purpose applications.


◆ Convenient in-style mounts either horizontally or vertically.


◆ Wide range capacity to handle local water supply pressure and adjust to specific pump specifications.


◆ Adjusting nut allows easy calibrated pressure adjustment.


◆ Stainless Steel 304/316 lower body and upper body construction for durability and compatibility.


◆ The balanced piston design provides a constant outlet pressure even when the inlet pressure is unstable. The supplied pressure gauge indicates the outlet pressure.


◆ Easy maintenance, maintenance kits are available upon request.
