Installation

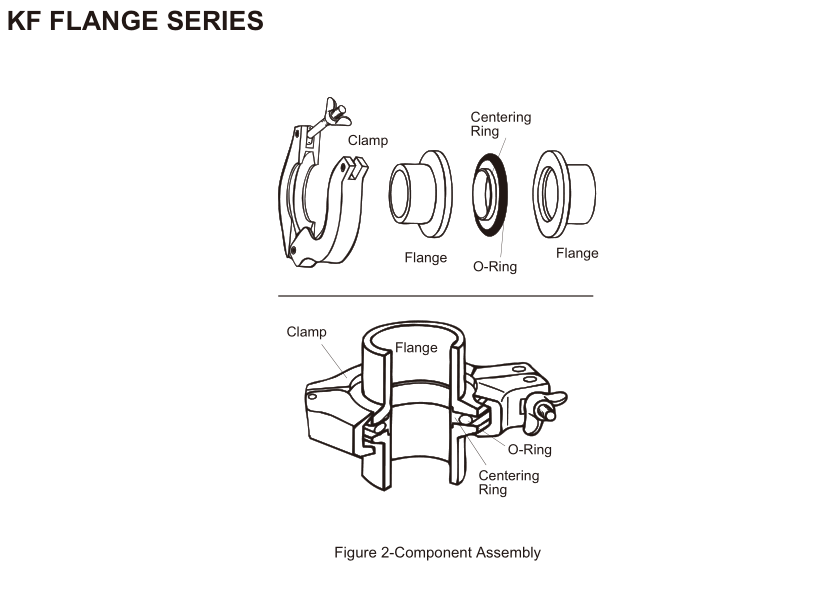

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).
Vacuum fittings

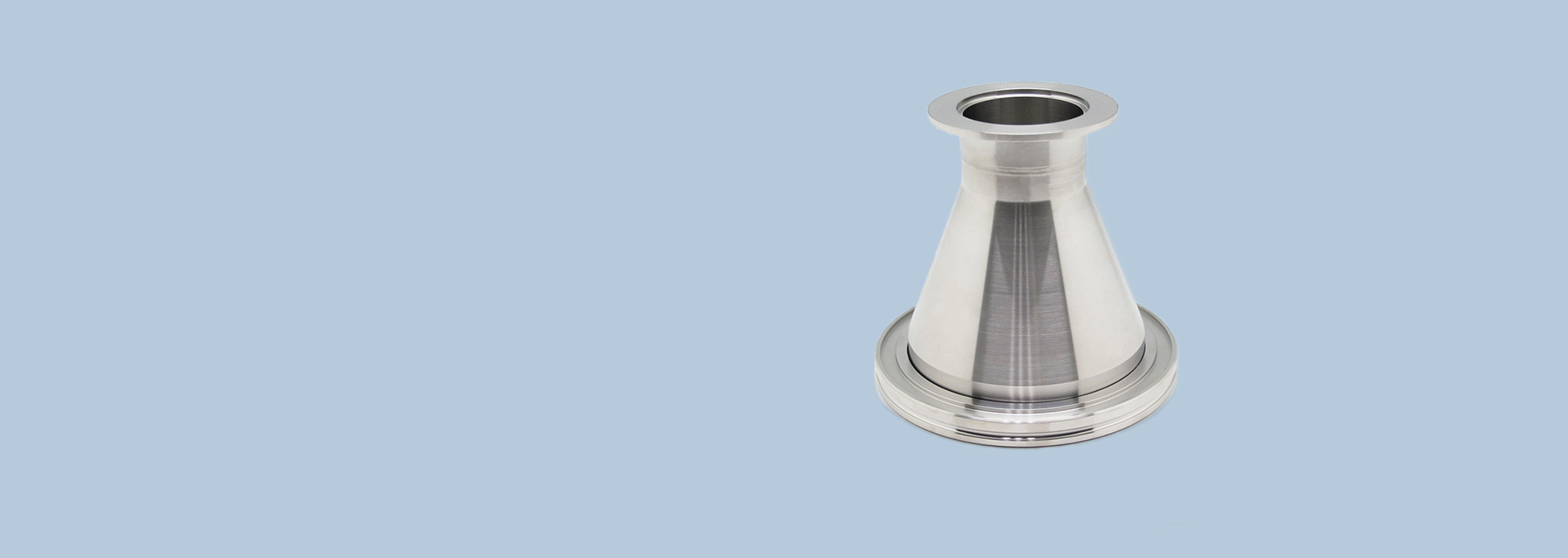

KF Conical Reducing Adaptor
Roughing and foreline plumbing; Small systems; Systems requiring frequent cleaning or modification; Research and teaching laboratories ISO-KF components are primarily designed for use at subatmospheric pressure.
Specifications

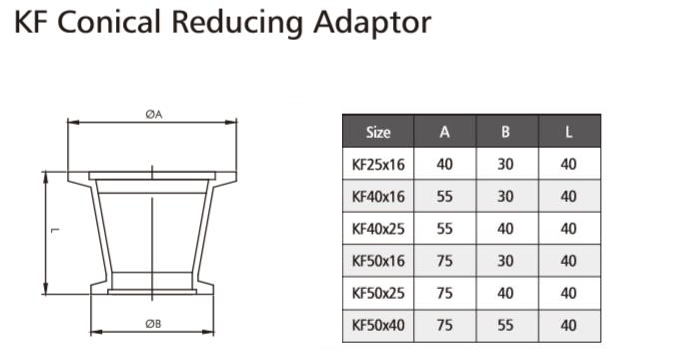

Vacuum fittings - KF Conical Reducing Adaptor
Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C
