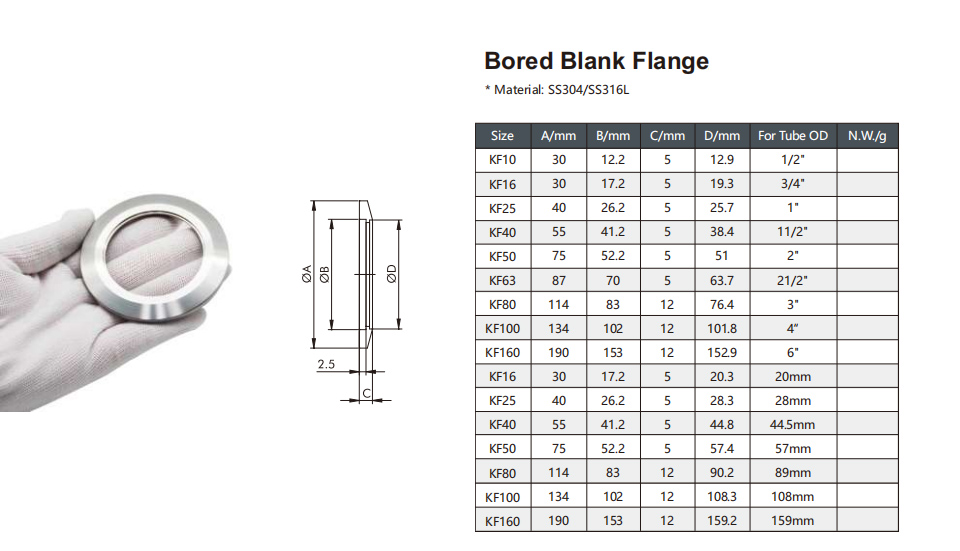

KF Bored Blank Flange

KF Bored Blank Flange, find complete details about KF Bored Blank Flange - QiiMii Stainless Supplier
Inquire Now

Specifications

Vacuum fittings - KF Bored Blank Flange

Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C

Features & Benefits

Installation

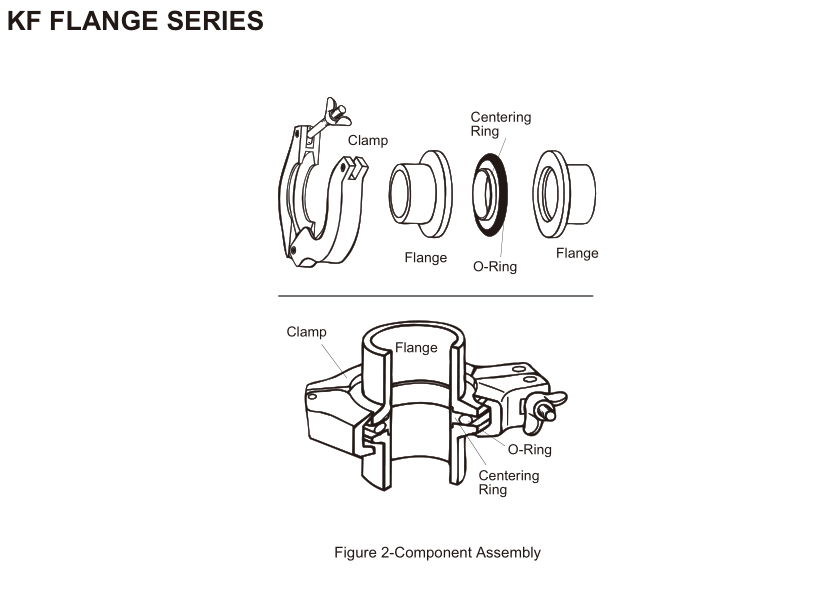

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).
