Installation

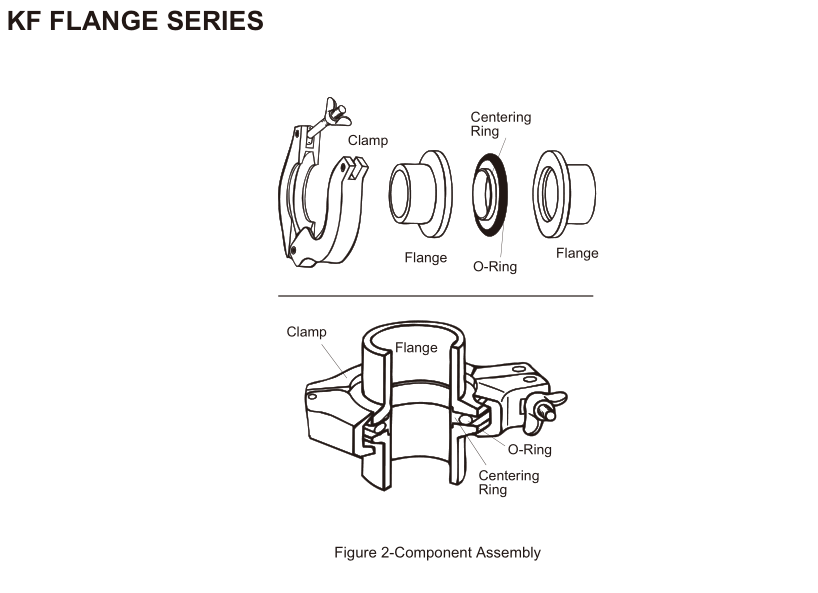

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).
Vacuum fittings

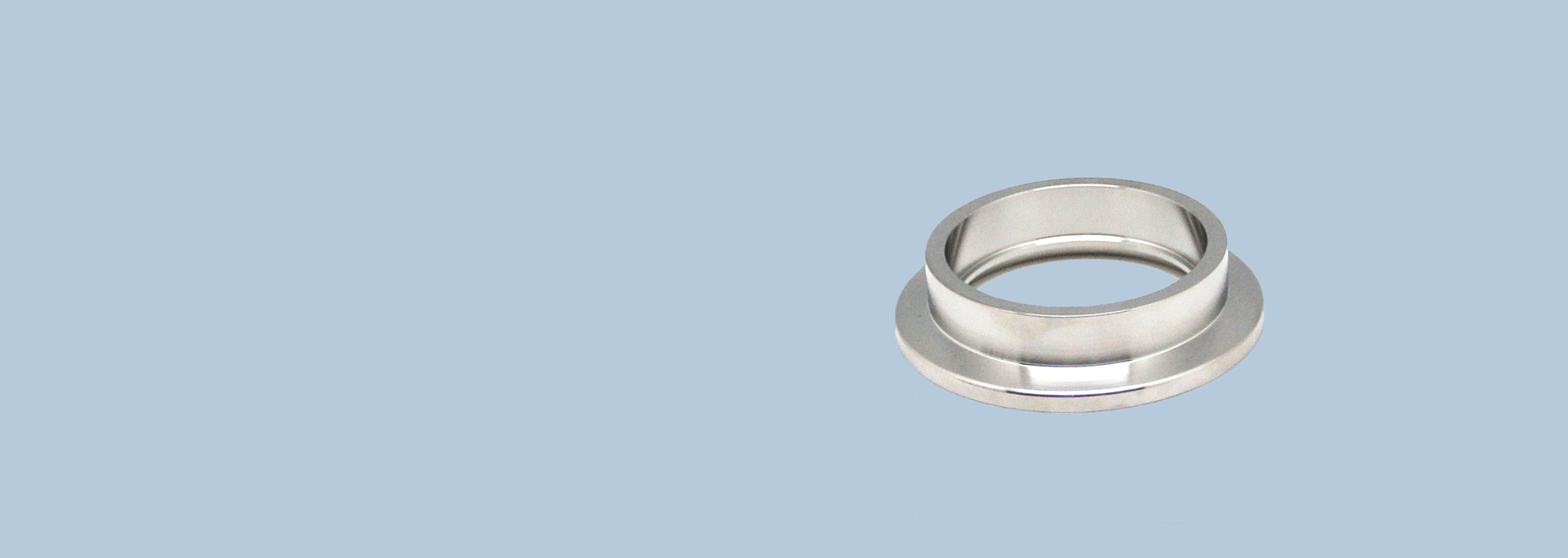

KF Socket Weld Flange
Applications Roughing and foreline plumbing Small systems Systems requiring frequent cleaning or modification Research and teaching laboratories Description The ISO-KF system is a modular, b
Specifications

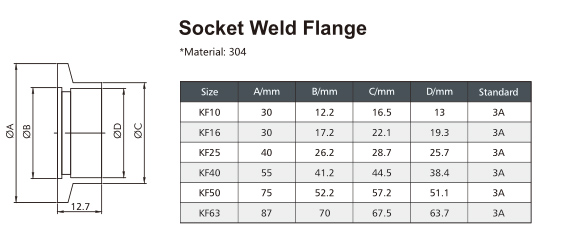

Vacuum fittings - KF Socket Weld Flange
Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C
