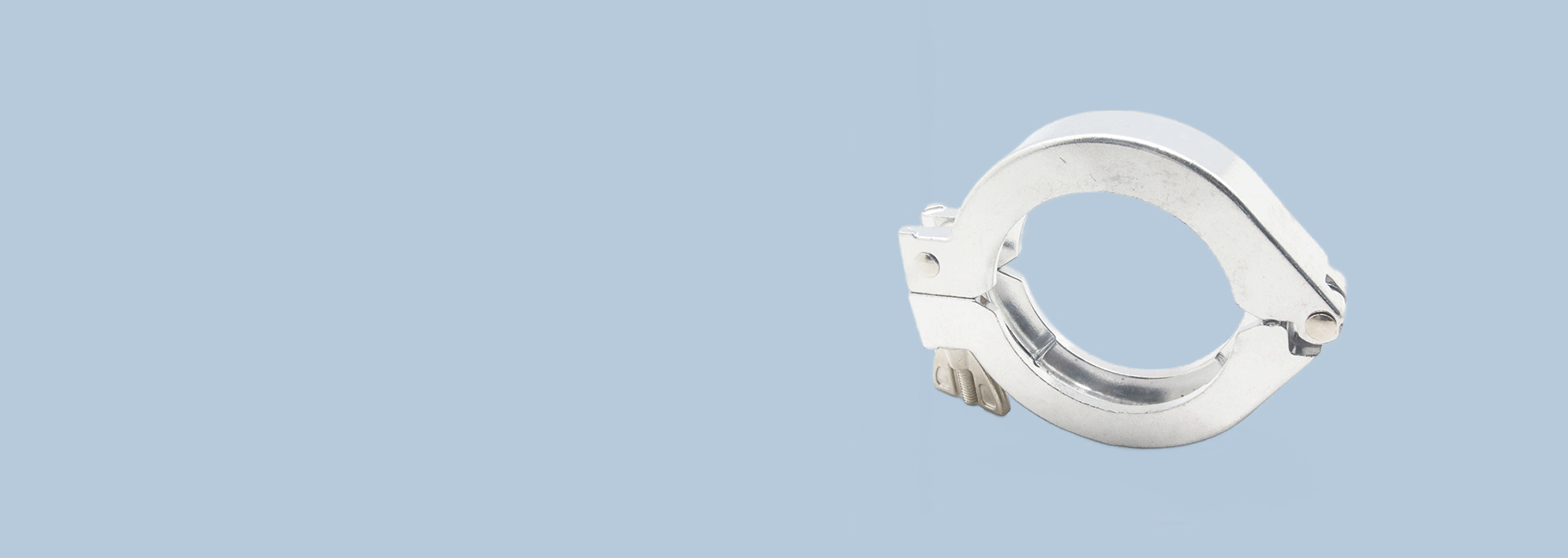

KF Single Pin Clamp

ISO-KF fittings can be used in a wide variety of applications including: • Roughing and foreline plumbing • Small systems • Systems requiring frequent cleaning or modification • Research a
Inquire Now

Specifications

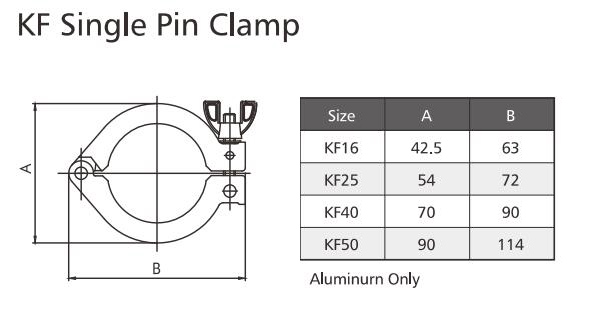

Vacuum fittings - KF Single Pin Clamp

Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C

Features & Benefits

Installation

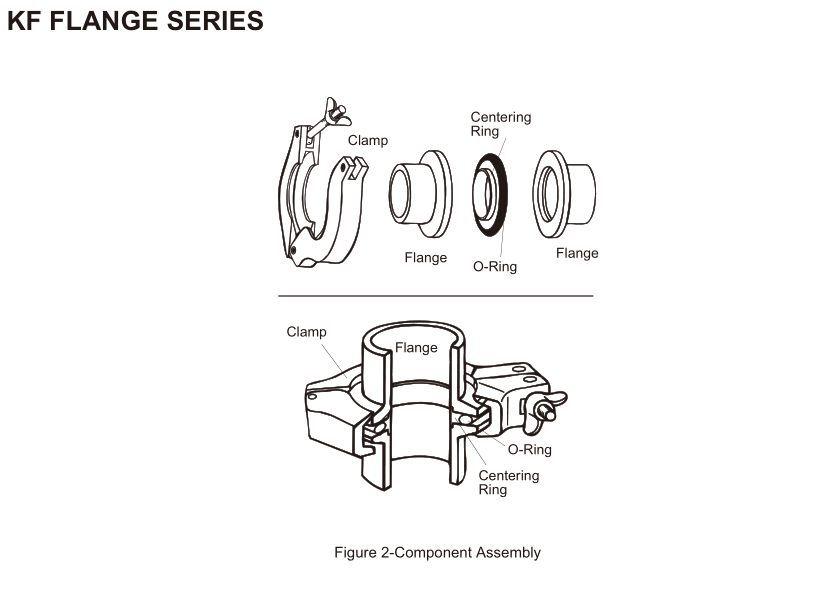

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).
