Vacuum fittings

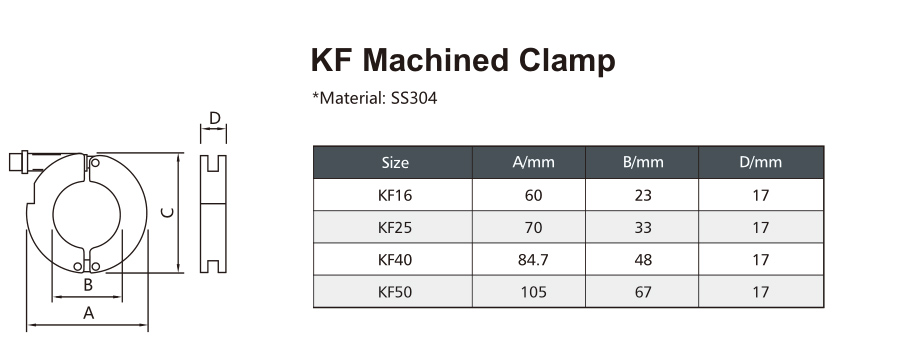

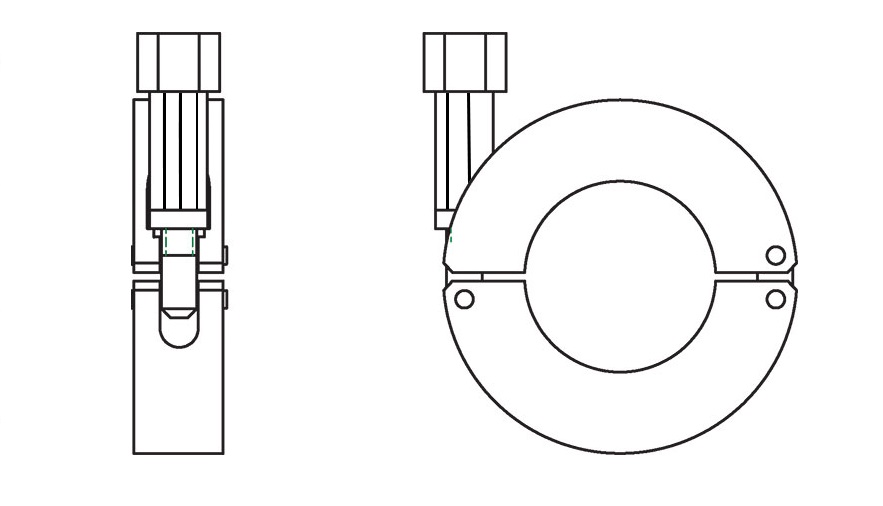

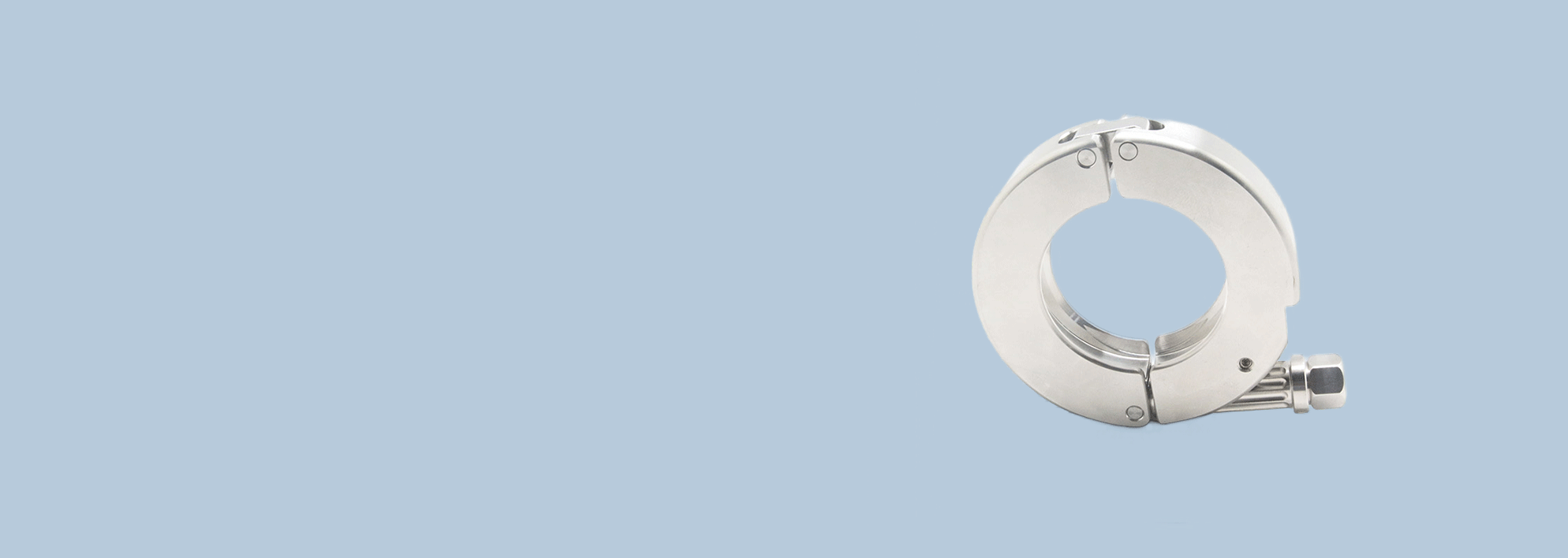

KF Machined Clamp High Tension With Lock
ISO-KF fittings can be used in a wide variety of applications including: • Roughing and foreline plumbing • Small systems • Systems requiring frequent cleaning or modification • Research
Specifications
Vacuum fittings - KF Machined Clamp High Tension With Lock
Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C
Installation

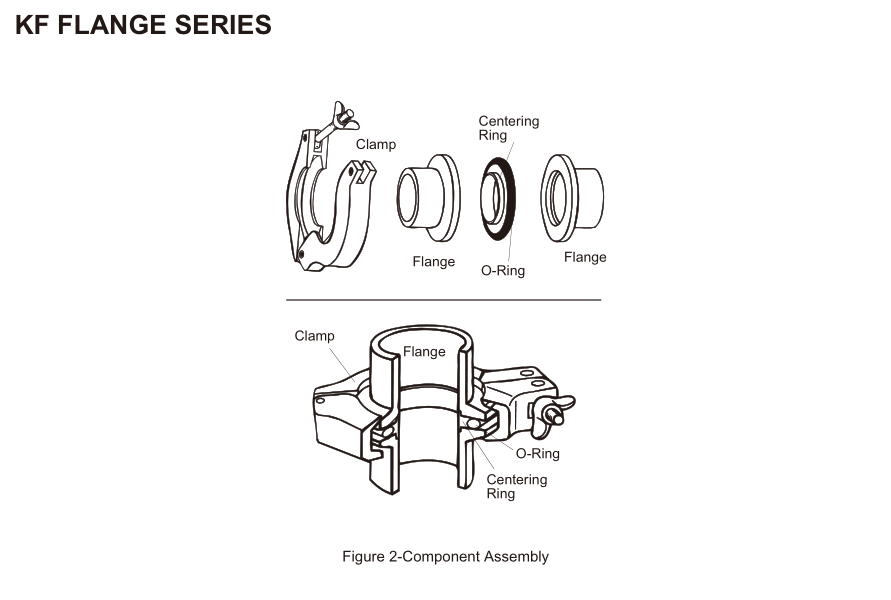

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).
Material and Size
• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps:
Aluminum or Stainless Steel 304
• Oring:
Viton
