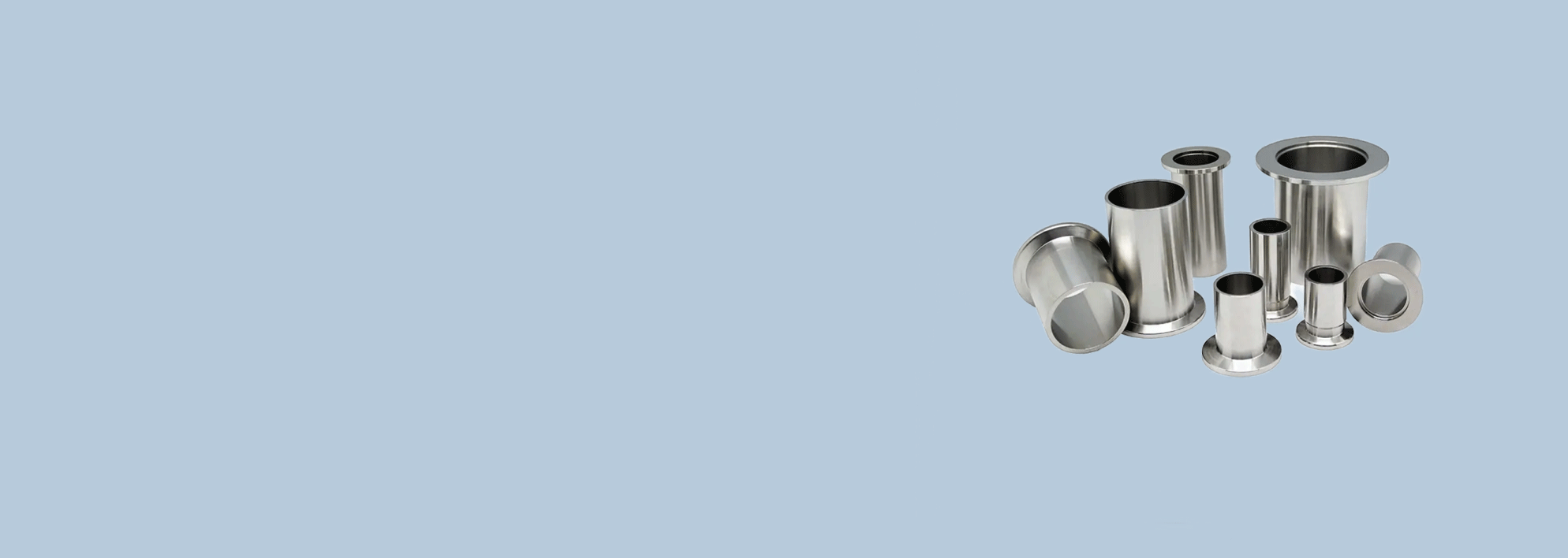

KF Weld Stub Short flange Vacuum Flange
ApplicationISO-KF fttings can be used in a wide variety of aplications including:●Roughing and foreline plumbing●Small systems●Systems requiring frequent cleaning or modification●Research and teaching
Specifications
Vacuum fittings - KF Weld Stub Short flange Vacuum Flange
Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).
Material and Size
• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps: Aluminum or Stainless Steel 304
• Oring: Viton

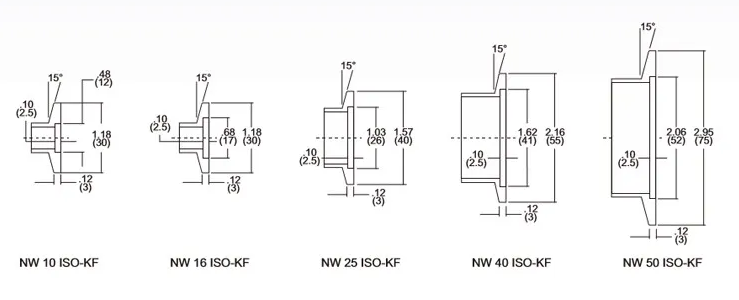

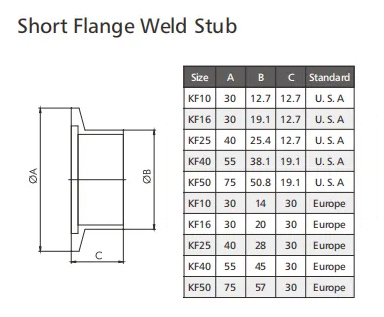

Drawing
