Vacuum fittings

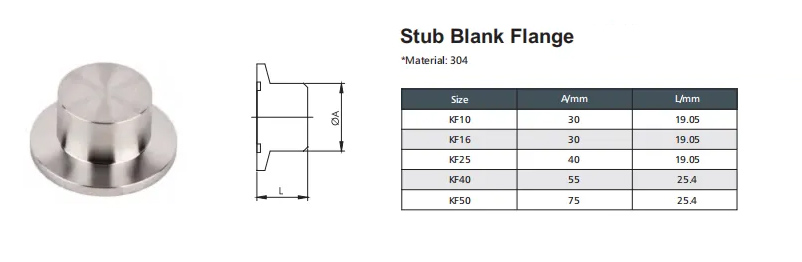

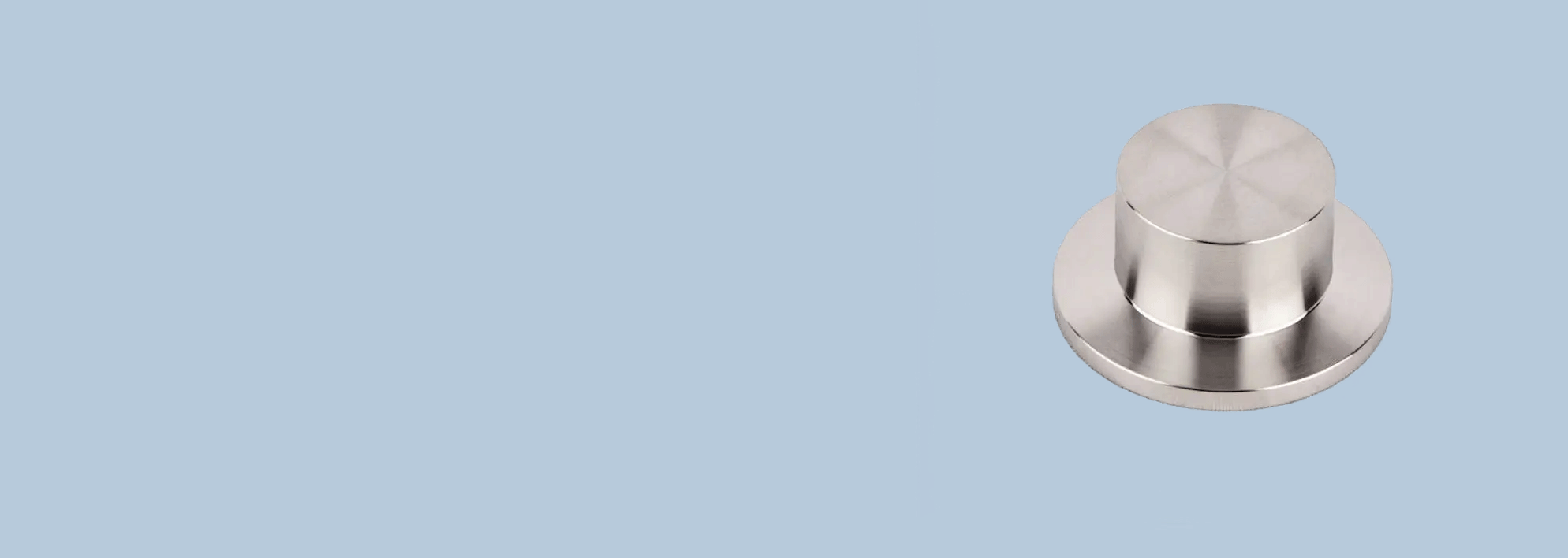

KF Blank Stubs Flange Vacuum flange

ApplicationISO-KF fttings can be used in a wide variety of aplications including:●Roughing and foreline plumbing●Small systems●Systems requiring frequent cleaning or modification●Research and teaching

Specifications

Vacuum fittings - KF Blank Stubs Flange Vacuum flange

Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C

Features & Benefits

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Material and Size

• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps: Aluminum or Stainless Steel 304
• Oring: Viton
